Main Characters

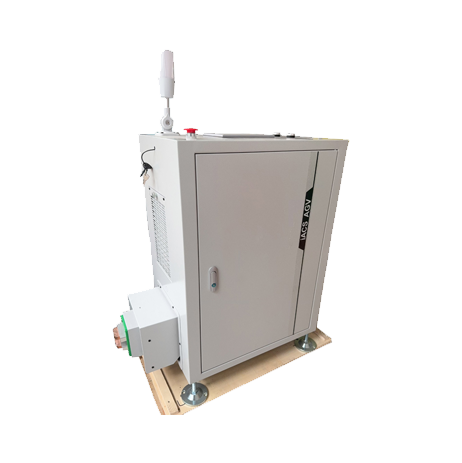

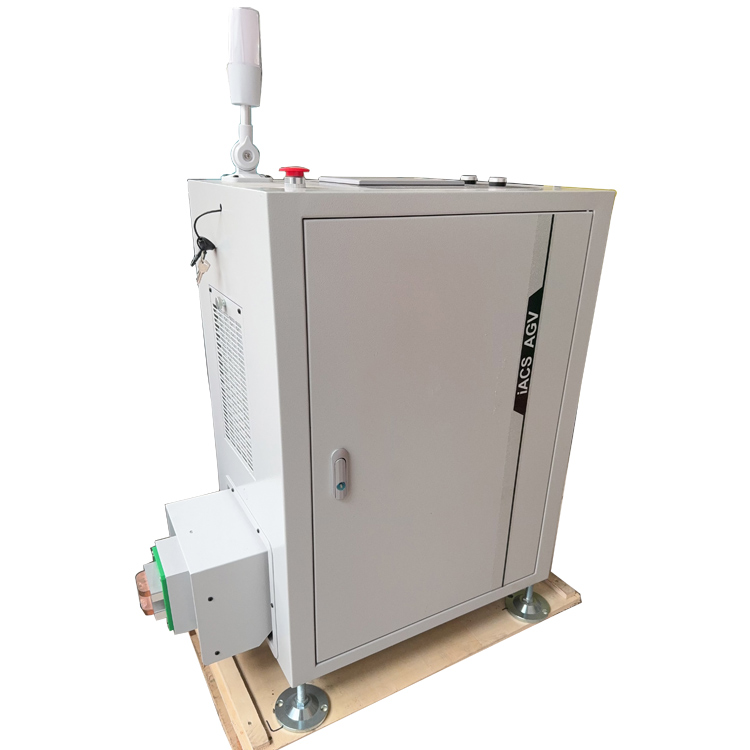

● Charging station is integrated mechanism, fast and convenient  installation (also split type; ACS has no telescopic telescopic mechanism)

● Third party equipment installation space is reserved to provide system access capability.

● The modular design can be applied to all kinds of AGV solutions.

● With short circuits, over-voltage, over-current, over temperature and other protection functions

● It has both automatic charging and manual charging functions. ( It is strictly prohibited to reverse the connection during forced charging)

● With dry contact, can, Ethernet, Rs485, Wifi and other communication interfaces(0ptional, according to customer requirements).

● The management background can query the real-time data of charger through CAN, RS485, Wifi and other data interfaces ( Optional accordina to customer requirements ),

● There are 5 Types for Active expansion and passive expansion. 1: telescopic mechanism is in the body of the charging machine, 2:The telescopic mechanism is independent, and the aircraft plug is used to connect the charger, 3:Passive Contraction. Brush Plate and Brush Block. 4: The docking mechanism has the functions of front and back expansion, up, down, left and right floating. 5: Ground Charge

Main technical parameters
