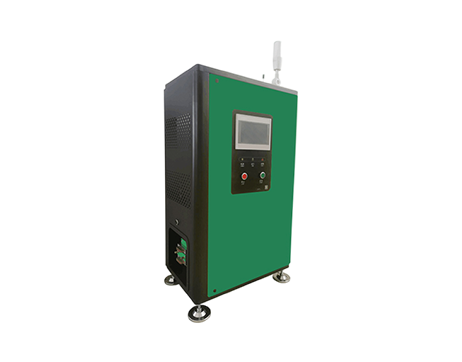

IACS series intelligent charger adopts the modular design of the combination of high-frequency soft switch and DSP digitization, with high conversion efficiency and high power factor. Through the main circuit module of parameter optimization design, it provides continuously adjustable charging current for various AGV vehicles. It adopts wireless WiFi or infrared diffuse reflection, infrared radiation and other methods for intelligent charging, and the charging process is fully automated. It has a variety of communication interfaces, which can realize data exchange with most lithium battery BMS, upper computer, etc.

There is an automatic telescopic mechanism on the side, which is fast and convenient to install; multiple charging modules are redundant in parallel to output, simple structure, safe and reliable.

The charger is equipped with a 7-inch touch screen, which can realize charging process control, charging status display, charging data recording, and fault information recording functions. It also opens a professional configuration interface, allowing customers to configure the charging curve according to their own needs.

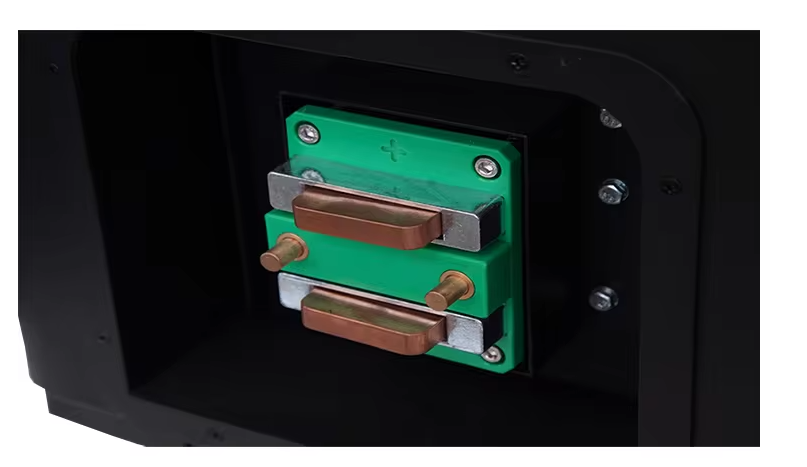

This series of charger has the automatic control function of charger and charging contact position. AGV charging system can charge AGV system according to the needs of users; The system automatically detects and controls the telescopic mechanism of the contact, so that the charging contact brush plate is automatically connected with the AGV charging brush plate. After ensuring reliable connection with the AGV charging contact, the charging process is automatically controlled to meet the needs of automatic charging of AGV equipment.

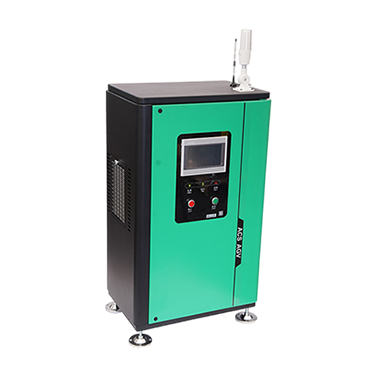

1.Charging station is integrated design, with automatic telescopic mechanism, fast and convenient installation (also split type; ACS has no telescopic mechanism)
2.Third party equipment installation space is reserved to provide system access capability.
3.The modular design can be applied to all kinds of AGV solutions.
4.With short circuit, over-voltage, over-current, over temperature and other protection functions.
5.It has both automatic charging and manual charging functions.( It is strictly prohibited to reverse the connection during forced charging)
6.With dry contact, can, Ethernet, RS485, WiFi and other communication interfaces(Optional, according to customer requirements).
7.The management background can query the real-time data of charger through CAN, RS485, WiFi and other data interfaces(Optional, according to customer requirements).
