♦ Combine leakage transformer, technology of silicon-controlled rectifier and Micro-computer to improve the Wsa+Pulse charging characteristic curve.
♦ Greatly prolong the working life of the battery as pulse charge would be performed before gas emissions and in late stage of recharge.
♦ Dynamic tracking and auto adjust the charging paremeters through PID control technology.
♦ Automatic detection, delaying and soft-start.Temperature compensation when voltage achieve tipping point of gas emission

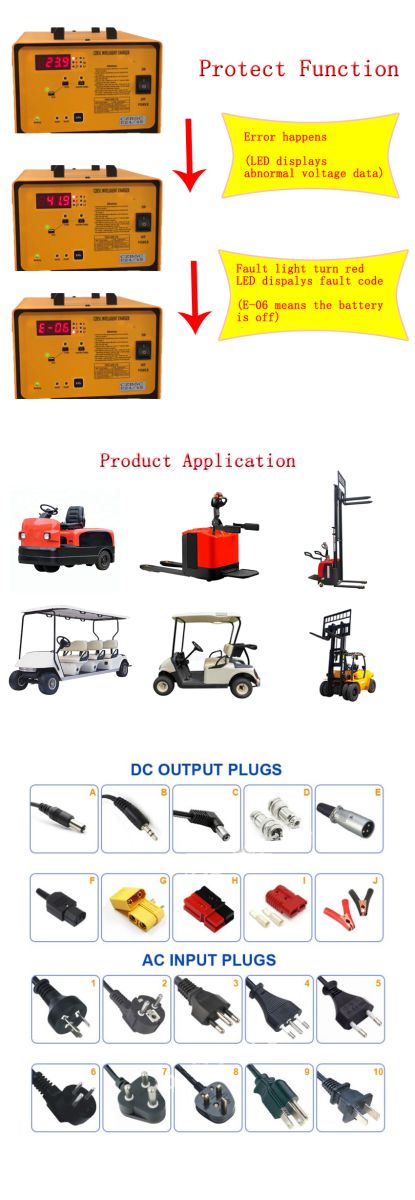

♦ Protection and alarm functions of open circult, reverse connection, over load and short circuit etc.

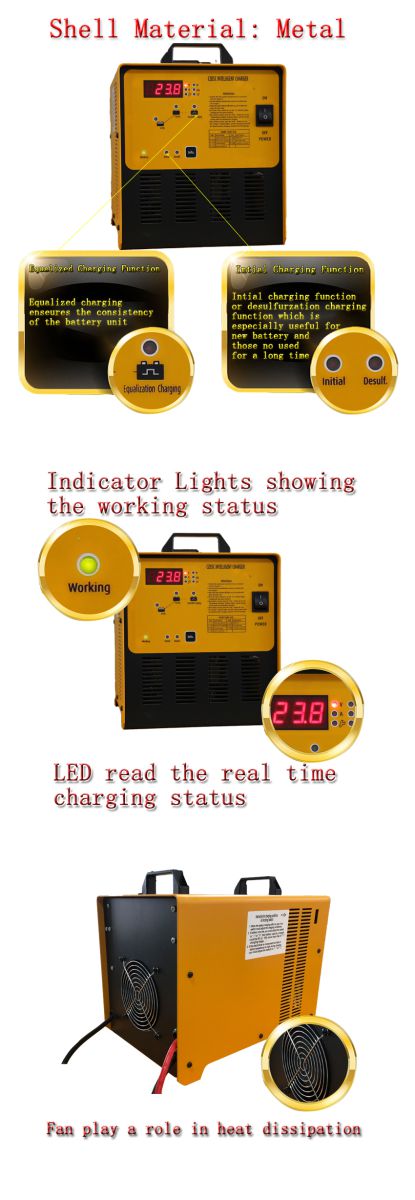

♦ Initial charging and desulfuration charging function for new or long no-used battery
♦ Recording date of the past 30 times charging result.
♦ Apply to electric pallet trucks, forklift, lift truck,electric tour bus and so on which used lead-acid battery.
♦Parameters:
| Type(V/A) | Main Power(V) | Input Power (KVA) | Input Current(A) | Output Current(A) | Battery parameters V/AH(7.5H~10H) | Size(mm) | Weight(Kg) |
| CZB5C-E24V/20A |
Single Phase |
0.75 | 3.4 | 20 | 24V/115-160AH | 240*350*260 |
21.0 |
| CZB5C-E24V/50A | 1.9 | 8.5 | 50 | 24V/290-400AH | 240*350*260 |
25.5 |
|
| CZB5C-E24V/80A | 3.0 | 13.6 | 80 | 24V/464-640AH | 466*360*783 |
40.0 |
|
| CZB5C-E24V/30A | 1.1 | 5.1 | 30 | 24V/175-240AH | 240*350*260 |
21 |
|
| CZB5C-E36V/30A | 1.7 | 7.7 | 30 | 36V/175-240AH | 240*350*260 |
23.5 |
|
| CZB5C-E48V/30A | 2.3 | 10.2 | 30 | 48V/175-240AH | 240*350*260 |
28 |
|
| CZB5C-E36V/40A | 2.3 | 10.2 | 40 | 36V/230-320AH | 240*350*260 |
24.5 |
|
| CZB5C-E48V/25A | 1.9 | 8.5 | 25 | 48V/145-200AH | 240*350*260 |
24.5 |
|
| CZB5C-E48V/45A | 3.4 | 15.3 | 45 | 48V/260-360AH | 466*360*783 |
42 |
|
| CZB5C-E48V/65A | 4.9 | 22.2 | 65 | 48V/375-520AH | 466*360*783 |
50 |
|
| CZB5C-E48V/80A | 6.0 | 27.3 | 80 | 48V/465-640AH | 466*360*783 |
56 |
|
| CZB5C-E72V/30A | 3.4 | 15.3 | 30 | 72V/175-240AH | 280*430*280 |
35.5 |
|
| CZB5C-D48V/55A |
Three Phase
|
4.1 | 6.3 | 55 | 48V/320-440AH | 466*360*785 |
62 |
| CZB5C-D48V/65A | 4.9 | 7.4 | 65 | 48V/375-520AH | 466*360*785 |
65 |
|
| 6.0 | 9.1 | 80 | 48V/465-640AH | 466*360*785 |
68 |
||
| CZB5C-D48V/100A | 7.5 | 11.4 | 100 | 48V580-800AH | 526*360*883 |
86 |
|
| CZB5C-D48V/120A | 9.0 | 13.7 | 120 | 48V/700-960AH | 526*360*883 |
95 |
|
| CZB5C-D80V/65A | 8.1 | 12.3 | 65 | 80V/375-520AH | 526*360*883 |
87 |
|
| CZB5C-D80V/70A | 8.8 | 13.3 | 70 | 80V405-560AH | 526*360*883 |
87 |
|
| CZB5C-D80V/80A | 10.0 | 15.2 | 80 | 80V/465-640AH | 526*360*883 |
89 |
|
| CZB5C-D80V/100A | 12.5 | 19.0 | 100 | 80V/580-800AH | 526*360*883 |
95 |
|
| CZB5C-D80V/120A | 15.0 | 22.8 | 120 | 80V/700~960AH | 526*360*883 |
107 |
