CZC7SI

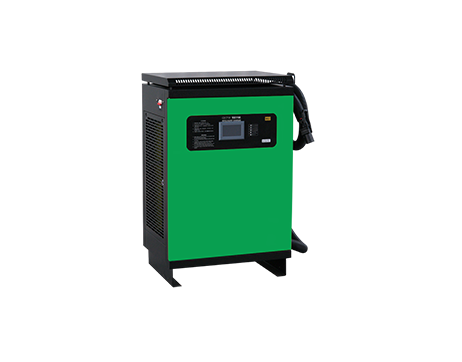

Model: CZC7SI

Product Introduction

High efficiency & High power density which can reduce energy consumption(save electricity).

♦ Lithium battery charger, connects several high-performance switching rectifier modules to expand larger charging output current.

♦ Built-in host computer which monitor and control the charging process in real-time.

♦ DSP digital control makes the more stable, reliable and easier to expand.

♦ Allow large voltage fluction, suitable for most of harsh working environment.

♦ Protect function: overload, short circuit, open circuit, reverse connection and so on.The charger will tell you the fault detail.

♦ BMS Communication allowed for good management of batteries.

♦ Memory function to record the charging history.

CZC7SI top quality 100V 100A 200A 300A battery charger adjustable with touched LCD

♦ Parameters:

Style	CZC7SI-D100v/100A	CZC7SI-D100V/200A	CZC7SI-D100V/300A	CZC7SI-D60V/100A	CZC7SI-D60V/200A	CZC7SI-D60V/400A	CZC7SI-30V/75A	CZC7SI-30V/150A
Rated input voltage(V)	Three phase	Three phase	Three phase	Three phase	Three phase	Three phase	Single phase	Single phase
Input power(KVA)	10.6	21.3	31.9	6.4	12.8	19.1	25.5	2.5
Max input current(A)	16.2	32.3	48.5	9.7	19.4	29.1	38.8	11.2
Power factor	0.99	0.99	0.99	0.99	0.99	0.99	0.99	0.99
THD	≤7%	≤7%	≤7%	≤7%	≤7%	≤7%	≤7%	≤7%
Overall efficiency	0.94	0.94	0.94	0.94	0.94	0.94	0.94	0.94
Rated output current(A)	100	200	300	100	200	400	75	75
Max output voltage(V)	100	100	100	60	60	60	30	30
Voltage regulation accuracy	60-100	60-100	60-100	30-60	30-60	30-60	21-30	21-30
Steady flow accuracy	≤±1%	≤±1%	≤±1%	≤±1%	≤±1%	≤±1%	≤±1%	≤±1%
Work condition temperature(℃)	-25℃-45℃
Szie(mm)	300360600	7705501026		300360600	7705501026		300360600
Weight(KG)	40	130	140	40	130	140	35	38

CZC7SI top quality 100V 100A 200A 300A battery charger adjustable with touched LCD

200a Fast intelligent li ion lithium battery charger with charging gun for ev pallet truck electrical vehicle CZC7SI-D100V/200A

Product content:

1. High efficiency and power density which can reduce energy consumption in order to save electricity

2. DSP digital control with higher environmental stability, reliability, and easier expansion

3. Low input harmonics which can reduce pollution to power grid

4. Wide input voltage and operating temperature which allows larger voltage fluctuation and harsh working environment

5. Rich error detection function friendly helping maintenance

Multi-functional touch screen allows online parameters setting and processing display 200a Fast intelligent li ion lithium battery charger with charging gun for ev pallet truck electrical vehicle CZC7SI-D100V/200A
